Vibration Roller Double Drum / NKY-7E
Double drum vibratory roller is capable of performing a wide range of soil and asphalt compaction applications. Dual smooth drums with beveled edges compact asphalt and granular materials equally as well for added job versatility. Large rubber shock mounts absorb vibration and shock to the upper components, reducing equipment wear and operator fatigue.
Detail description:

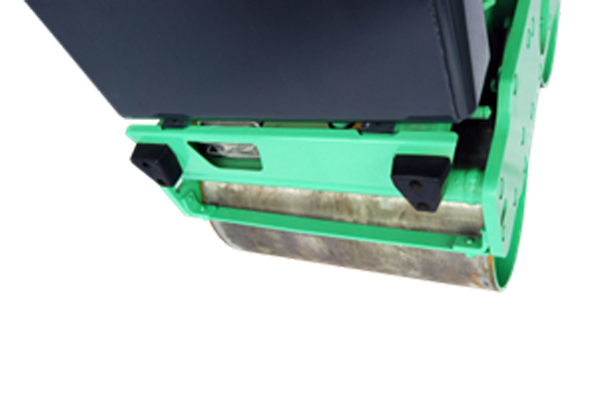

(Front light) ,(Anti-collision rubber)

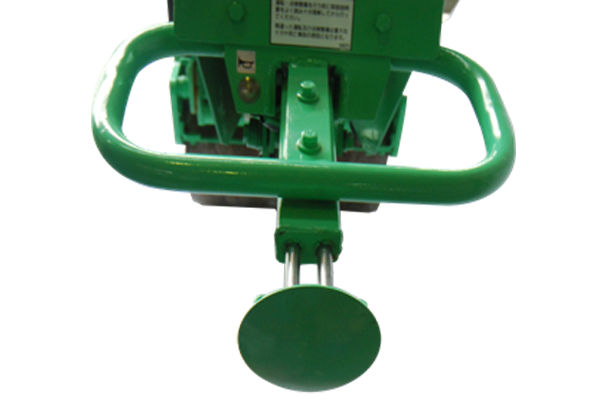

(Dead-man handle push stop)

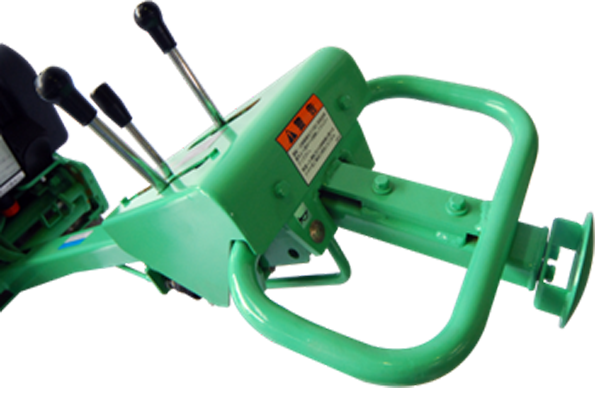

(Safety lever)
Front light suitable for dark operating environment
Dead-man handle push stop provides
Guide handle folds for compact storage, and features excellent
Anti-collision rubber features a safety operation
easy and safety operation
shock mounting for low vibration to operator
 |
 |
 |
Technical Data
|
Model |
NKY-7E |
|
|
Operating Weight |
Kg |
730 |
|
Dimensions |
L mm |
2440 |
|
W mm |
729 |
|
|
H mm |
1100 |
|
|
Front Drum Diameter |
mm |
405 |
|
Front Drum width |
mm |
650 |
|
Impact force |
Kn |
20 |
|
Forward Variable speed |
Km/h |
0-3.5 |
|
Static linear force |
N/mm |
5.56 |
|
Dynamic linear force |
N/mm |
20.94 |
|
Max Gradeability |
% |
≤20 |
|
Vibration frequency |
Hz |
55 |
|
Fuel Tank Capacity |
L |
4.8 |
|
Max Power Output |
Kw |
5.1 |
|
Fuel |
Diesel |
|
|
Power Source |
Type |
Kubota diesel EA330-E3-NB1 |
|
Displacement |
L |
0.163 |
|
Starting System |
Type |
Electric |
